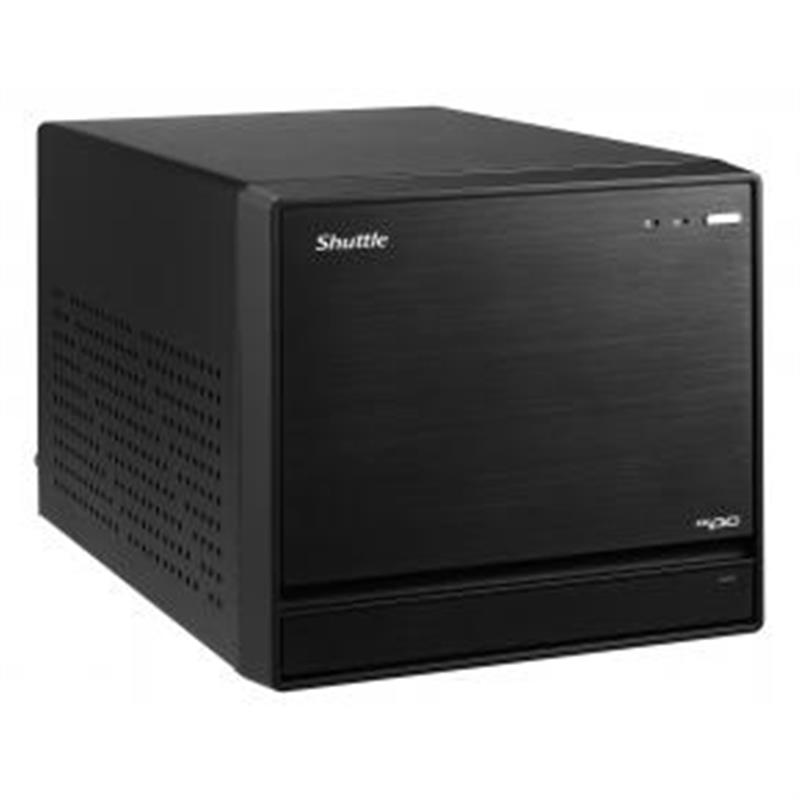

Shuttle XPC cube SW580R8 kubus Zwart Intel W580 LGA 1200 (Socket H5)
14-liter cube for server and workstation applications
Like its sister model SH570R8, the Shuttle XPC Barebone SW580R8 supports 10th/11th generation Intel Core processors, four large 3. 5 inch hard disks with Raid function, 128 GB DDR4-3200 RAM and dual-slot graphics cards.
In addition, the SW580R8 also accepts Xeon W-series processors featuring ECC and vPro for more system stability and remote management options. It also offers four network ports for the first time (two of them with 2.5 GBit/s), a second M.2 slot for SSD cards and a TPM security chip.
Such impressive performance and range of features in an aluminum chassis with a volume of only 14 liters makes SW580R8 the ideal platform for demanding mini-server and workstation PCs with top reliability even under heavy load.
Specificaties
| Processor |
|---|
| Nee |
| 125 W |
| Geheugen |
|---|
| DIMM |
| 4 |
| 128 GB |
| 2666,2933,3200 MHz |
| DDR4-SDRAM |
| Dual-channel |
| 1.2 V |
| Ja |
| Opslagmedia |
|---|
| HDD & SSD |
| 2.5,3.5,M.2 |
| SATA III |
| 6 |
| 0, 1, 5, 10, JBOD |
| Nee |
| Grafisch |
|---|
| Ja |
| Intel |
| Intel® UHD Graphics |
| Audio |
|---|
| Nee |
| Netwerk |
|---|
| Ja |
| Nee |
| Intel® I210-AT, Intel® I219-LM, Realtek RTL8125B |
| Poorten & interfaces |
|---|
| 4 |
| 7 |
| 1 |
| 4 |
| 1 |
| 2.0b |
| 1 |
| 1.4 |
| Ja |
| 2 |
| Uitbreidingsmodules |
|---|
| 3.0, 4.0 |
| 1 |
| 1 |
| 2 |
| Design |
|---|
| kubus |
| Zwart |
| Actief |
| PC barebone |
| Ja |
| HDD, Stroom |
| Aluminium |
| Ja |
| Kensington |
| Prestatie |
|---|
| Intel W580 |
| LGA 1200 (Socket H5) |
| 1 |
| Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Xeon® W |
| UEFI AMI |
| Ja |
| 2.0 |
| 5.1 kanalen |
| Realtek ALC897 |
| Windows 10, Windows 11 |
| Ja |
| Nee |
|
|---|
| CE, ENERGY STAR, ErP, RoHS |
| Energie |
|---|
| Interne voeding |
| 500 W |
| 1 |
| 100 - 240 V |
| 50/60 Hz |
| Eisen aan de omgeving |
|---|
| 0 - 40 °C |
| 10 - 90 procent |
| Gewicht en omvang |
|---|
| 215 mm |
| 332 mm |
| 190 mm |
| 3,5 kg |
| 4,5 kg |
| Inhoud van de verpakking |
|---|
| Ja |
| Ja |
| Ja" |
